Cables

9YSL(St)CY-J 0.6/1 kV EMV UL/c(UL)

Download PDF

Add to inquiry

Download PDF

To inquiry
Description
Description
Design
Technical Data
Contact

UL recognized PP/PVC motor power supply cable, screened

Automation and Motor Supply Cables

Double screened flexible motor supply cables with special EMC-performance, with low capacitance design and PVC sheath. Contrary to usage of PVC insulated cables, PP insulated cables show significant reduction of useless reactive power always needed for charging and discharging the cable during operating of the frequency converter.

This product has 11 option(s)

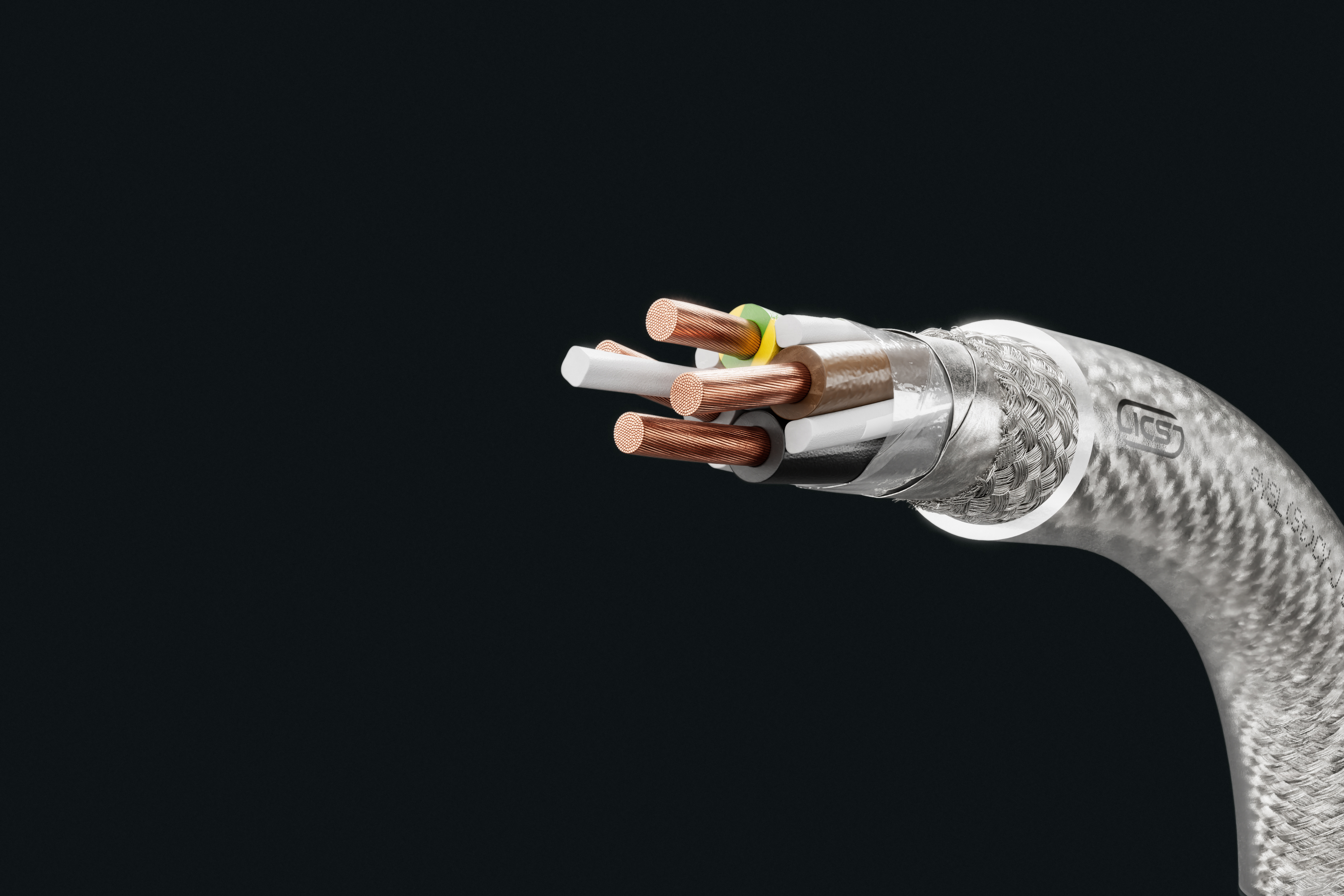

Cable image - 9YSL(St)CY-J 0.6/1 kV EMV UL/c(UL)
Cable image
Cable image
Cable image
Description
Description
Design
Technical Data
Contact

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Outer diameter appr. (mm)
Cu-value (kg/km)
Total weight appr. (kg/km)
4 G 1.5
10.5
87
151
4 G 2.5
11.8
133
207
4 G 4
13.3
213
272
4 G 6
14.9
298
371
4 G 10
17.7
460
557
4 G 16
21.5
707
1218
4 G 25
26.3
1100
1367
4 G 35
29.7
1542
1763
4 G 50
35.8
2206
2318
4 G 70
40.9
3002
3253
4 G 95
44.6
4004
4201

Technical changes reserved.

All figures are therefore without guarantee.
